Using the Library Browser

In PLECS Standalone it is opened automatically when the program is started. In PLECS Blockset the library browser is opened by a double-click on the Components block in the PLECS library. It can always be re-opened by choosing Library Browser in the Window menu or using the shortcut Ctrl+L (on macOS: Cmd+L).

You can navigate through the component library by clicking on the tree entries. Alternatively, you can search for a specific component by typing part of its name into the search bar.

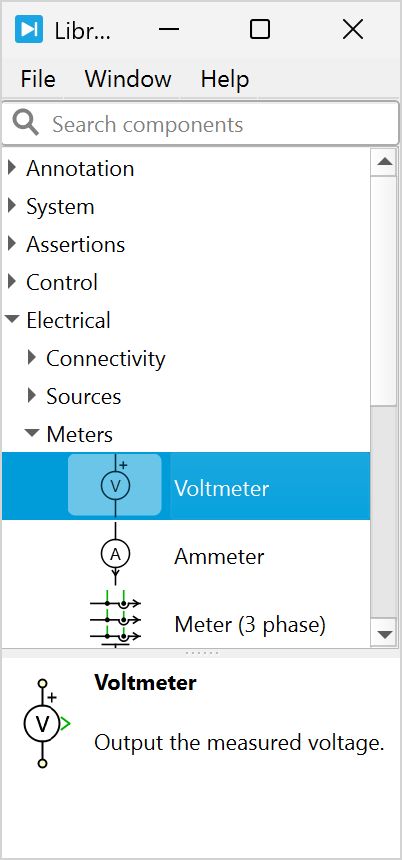

../../_images/library_browser.png — Fig. 28 The Library Browser

Drag the components you need from the library browser into the schematic editor.
